LS-200 Linear Stage
About the LS-200

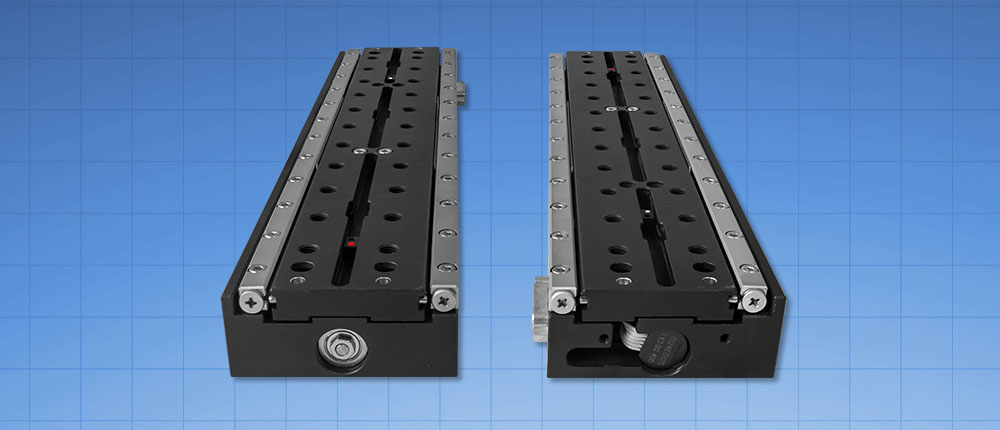

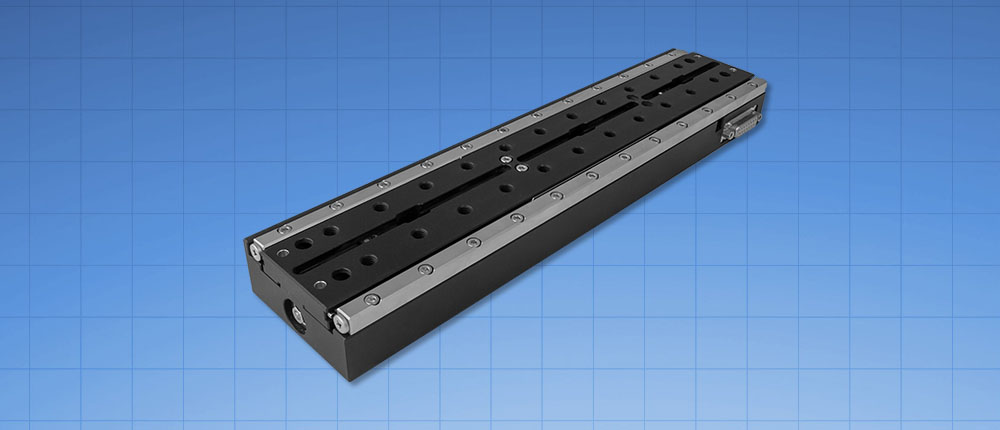

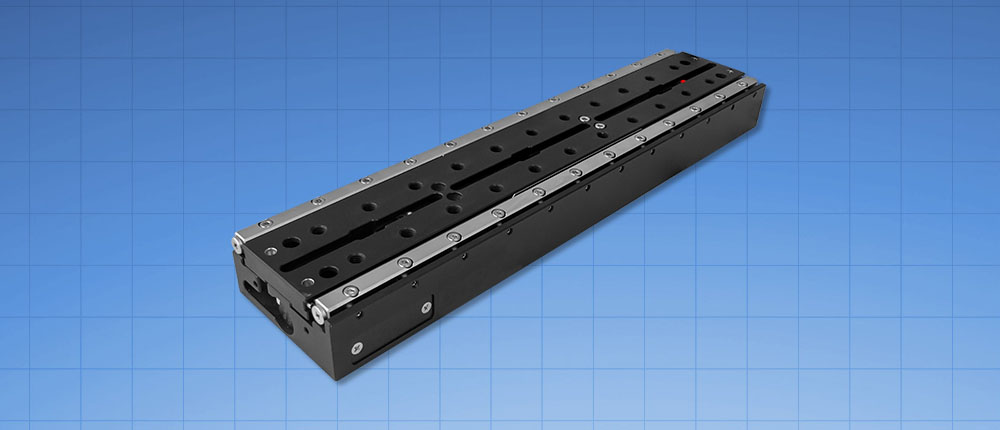

The LS-200 Linear Microscope Stage is a compact, high-precision positioning platform designed for applications requiring accurate motion over moderate travel ranges. Featuring closed-loop DC servo control on the X, Y, and Z axes, the LS-200 обеспечивает smooth, reliable positioning with micron-scale repeatability. Its wide dynamic speed range and adjustable trapezoidal motion profiles allow seamless transitions between rapid movement and fine control, while electronic torque limiting and Hall-effect sensors ensure dependable, built-in protection.
With a 200 mm travel range and encoder resolution down to 5.5 nm (200 nm repeatability with linear encoder), the LS-200 delivers consistent, high-resolution performance in a smaller footprint. Lead screw accuracy of up to 0.25 µm/mm supports precise positioning, while maximum speeds up to 1.75 mm/s (fine pitch) provide an effective balance between speed and control for imaging and scanning tasks.
A variety of lead screw pitch options enables users to tailor performance from high-speed motion to enhanced precision. Combined with smooth dual-range joystick control, programmable positioning routines, and compatibility with simple serial commands or Micro-Manager, the LS-200 integrates easily into automated systems without the need for proprietary software.
