Description

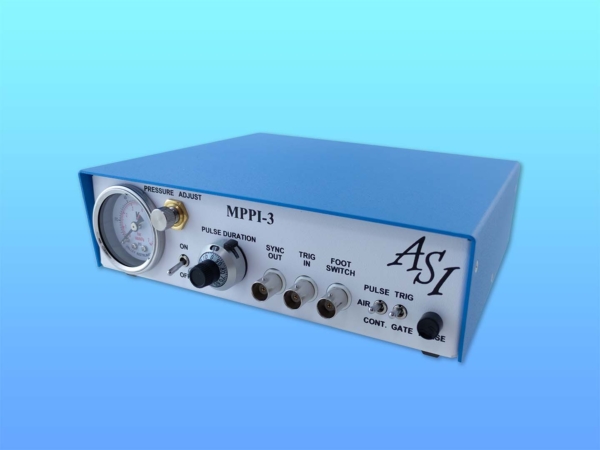

The Milli-Pulse Pressure Injector, MPPI-3 produces gas pressure pulses to an injection pipette. The unit offers precise linear control of both pressure and pulse duration. Alternatively, an external source such as a signal generator can be used to control the pulse width and rate.
The MPPI-3 provides three methods to initiate the pressure pulse, in either Trigger or Gated mode:
- Front panel push button
- External TTL input signal
- Optional footswitch
Continuous output allows fine-tuning of the flow rate and clearing clogs from pipettes. Maximum input pressure is 100 psi (690 kPa). The output pressure is adjustable from 0 up to 100 psi. An internal gas filter increses for reliability and ease of maintenance.
The MPPI-3 has an input for an optional Back Pressure Unit (BPU). This option prevents any reverse flow in a pipette caused by capillary action after a pulse by providing an adjustable (0-15 psi or 0-100 kPa) back pressure.
The new MPPI-3 case allows stacking of multiple controllers. The compact size and low cost makes the MPPI-3 an ideal choice for your pressure injection needs.
