LS-100HVY Heavy-Lift Linear Stage

About the LS-100HVY

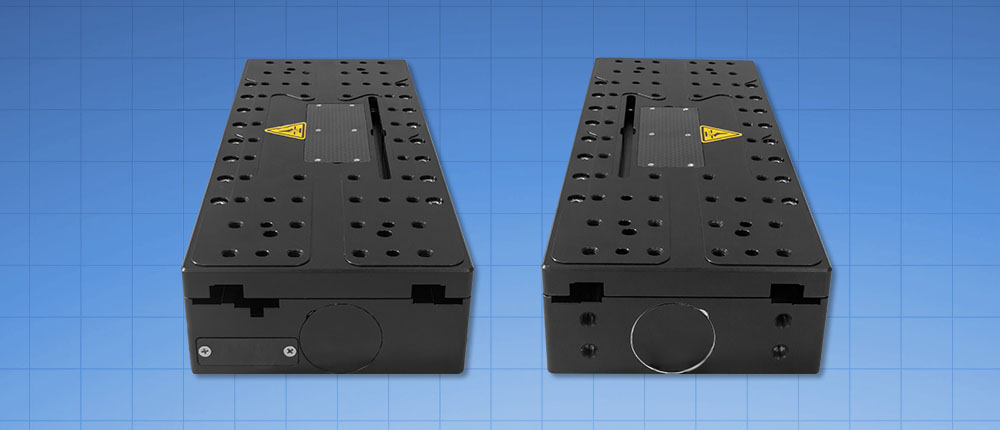

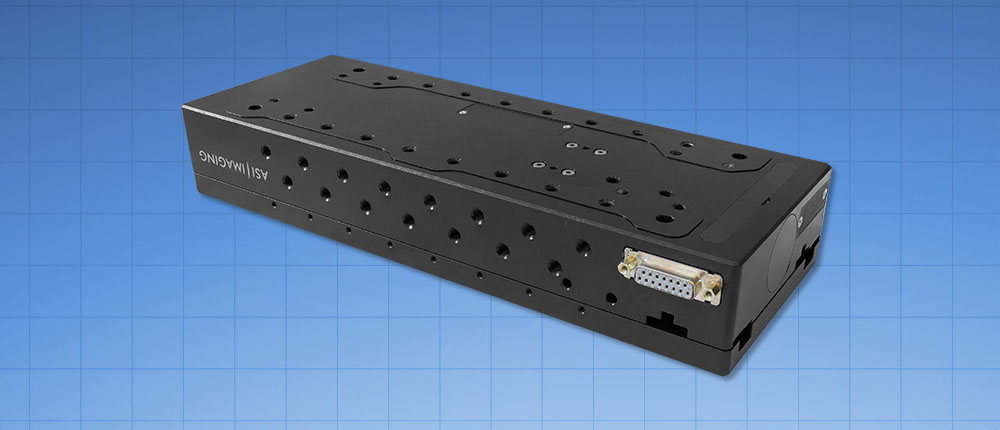

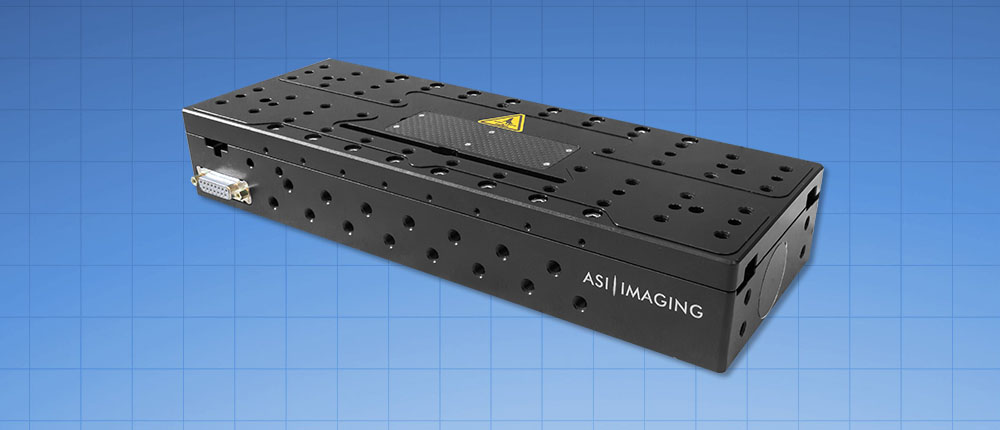

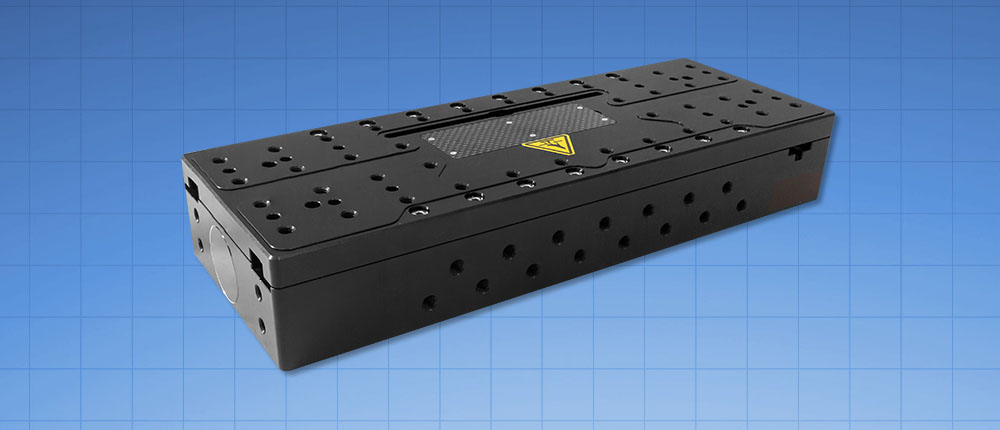

The LS-100 Heavy Lift Stage (LS-100HVY) is a new model of stage based on ASI’s sub-micron accuracy LS linear stages. Designed for applications where speed and accuracy are needed for lifting heavy loads, a single LS-100HVY is capable of moving up to 10 kg with sub-micron accuracy at speeds up to 5.5 mm/s over a range of 100mm.

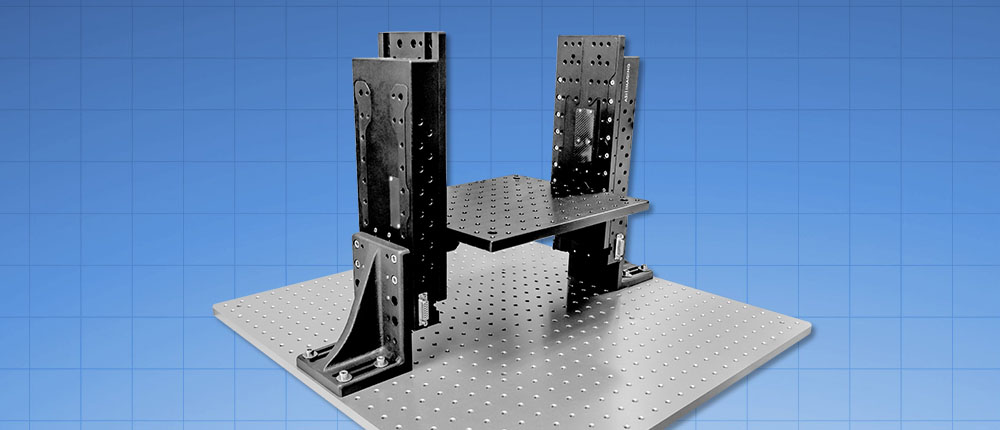

Configured with two LS-100-HVYs in tandem, weights of 20 kg can be lifted while maintaining speed and accuracy. With clamps to easily mount a breadboard between the two stages, a dual LS-100HVY system can easily lift entire microscope assemblies, very large samples, or whatever heavy lifting needs one might have.

As with all ASI motorized devices, the LS-100HVY can be controlled with simple serial commands or via micromanager; no proprietary software needed.

More Info

Features

LS-100HVY Features

Closed-loop DC servo control of the X-, Y-, and Z-axes for precise positioning
Wide dynamic speed range with adjustable trapezoidal move profiles
Electronic torque limit on drives for “built-in” limit protection
Hall-effect limit sensors on X-, Y-, and Z-axes
Micron-scale repeatability on all axes
Smooth adjustable dual-range joystick control
Other functions including programmable positioning patterns and scans

Specifications

Lead Screw Options

Datasheets

Technical Drawings

Add to cart

Maximum recommended load (for single stage)	10 kg
Encoder resolution (8 TPI)	11 nm
RMS repeatability (8 TPI)	< 0.7 µm
Leadscrew accuracy	0.25 µm/mm
Maximum velocity (8 TPI)	5.5 mm/s
Range of travel	100 nm
Length	300 mm (11.8″)
Width	110 mm (4.33″)
Height	50 mm (1.97″)
Weight	3.8 kg (8.6 lb)

Lead screw pitch options	Rotary encoder resolution		Maximum speed (dynamic range = 400)
	XY	Z	XY	Z
25.40 mm (Ultra-coarse)	N/A	88 nm	N/A	28 mm/s
12.70 mm (Super-coarse)	1680 nm	44 nm	200 mm/s	14 mm/s
6.35 mm (Standard)	840 nm	22 nm	100 mm/s	7 mm/s
1.59 mm (Fine)	210 nm	5.5 nm	25 mm/s	1.75 mm/s
