MIM, RAMM and VTS-2100 Systems Instruction Manual

Modular Infinity Microscope (MIM) Rapid Automated Modular Mounting(RAMM) Video Test Stand (VTS-2100)  


The MIM / RAMM /VTS systems consist of a number of modular components that allow rapid assembly of automated optical microscope systems. The Modular Infinity Microscope (MIM) consists of several optics sections, couplers, objective focus devices, beam splitter modules, light sources, etc. that can be constructed into a high performance optical microscope. The Rapid Automated Modular Mounting (RAMM) components are a set of precision machined bars, arches, and mounting parts that can be configured to support ASI automated stages and the MIM hardware in an inverted microscope configuration. The Video Test Stand (VTS-2100) components provide a method of mounting ASI stages and the MIM hardware in an upright microscope configuration. By utilizing these sets of hardware, high quality, customized, automated, optical platforms can be easily constructed at modest cost and with little specialized engineering. Optical requirements often drive the mechanical ones, so we will begin by describing the MIM system and its possible configuration variants. Then we will discuss the RAMM system components that are required for several sample applications. Finally we will discuss the VTS-2100 system configurations.

Modular Infinity Microscope

The minimum parts required to construct an infinity microscope system are the microscope objective, the tube lens, and a camera mount.

Figure 1: Simplest microscope configuration has C-mount for camera, tube with a tube lens, and an objective lens. Coupling ring connects modules; stop ring can be placed wherever there is a coupling ring. The 2 mm Allen driver is the main assembly tool.

ASI Modular Microscope components consist of tube lenses along with adapters and accessories that either are primarily used in the collimated light space or adapters that are to be used on the image side. Collimated light adapters use the 38mm diameter C60-RING system to connect components. Focus-side adapters attached to lens tubes with either a 30mm diameter coupling to the I.D. of the C60-TUBE, or with a 50mm coupling on the O.D. of the lens tube.

With infinity microscope systems, the objective can be spaced away from the tube lens without changing the optical magnification. This “infinity space” provides a region where other optical systems can be coupled to the microscope relatively easily. For epi-fluorescent illumination, a filter cube with a dichroic beam splitter can be added to provide the illumination path.

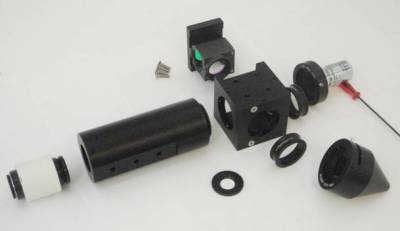

Figure 2: Exploded view of a MIM configured for epi-fluorescent illumination.

The cube module accepts a standard Olympus U-MF2 filter cube and provides coupling to the objective, tube lens assembly, and a fiber illuminator optic.

The MIM system uses as standard 38 mm diameter coupling ring to attach standard modules together. Three or four set screws on each component lock to the coupling ring and provide a simple, accurate, and flexible method of assembly. Each coupling ring also provides a space to include a beam stop. Appropriately placed stops can significantly reduce scattered light in the system.

Basic MIM Specifications

Tube Lenses Standard 32 mm dia. × 200 mm f.l. Nikon Also 100, 120, 160, 200, 300 & 400 mm f.l. achromat tube lenses are available.
Beam Splitters Olympus AX/BX/IX series cube U-MF2
Objectives Supported Nikon CFI60 Series ,Mitutoyo LWD Series, Olympus† ∞ corrected
Camera Ports Supported C-mount, T-mount, F-mount, ENG-mount
Illumination Liquid Light Guide Adapter, Lamp Adapters, LED sources available.
Configurations Limitless

†Olympus objectives will have overall magnification 1.11 × objective marking.  

MIM Tube Lenses and Assemblies

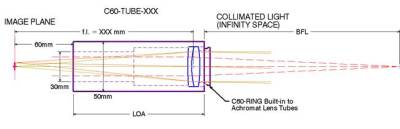

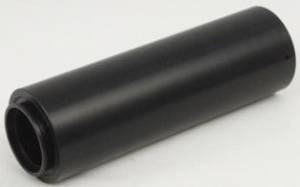

Figure 1: Basic tube lens focuses collimated light into an image.

ASI modular microscope components include tube lenses along with adapters and accessories that either are primarily used in the collimated light space or adapters that are to be used on the image side. Collimated light adapters use the 38mm diameter C60-RING system to connect components. Focus-side adapters attach to lens tubes with either a 30mm diameter Zeiss-style coupling to the I.D. of the C60-TUBE (e.g. typical C-mount adapter) or else with a 50mm coupling on the O.D. of the lens tube (e.g. T-mount adapter or C60-LAMP-ADPT for excitation light sources).

With infinity microscope systems, the spacing between the objective and tube lens doesn't change the optical magnification. This “infinity space” or “collimated space” provides a region where other optical systems can be coupled to the microscope relatively easily. For epi-fluorescent illumination, a filter cube with a dichroic beam splitter can be added to provide the illumination path. If the infinity space is too long then vignetting can occur; see the section Infinity Space Limitations (the allowable length scales with the tube lens focal length, so this is most troublesome when trying to decrease magnification by using a short focal length tube lens).

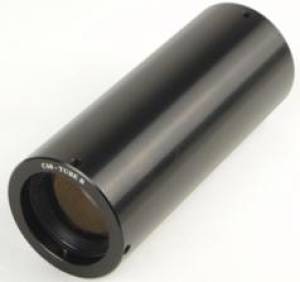

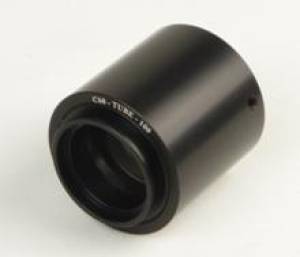

For imaging applications the most common tube lenses are the C60-TUBE-B which uses a Nikon 200mm multi-element tube lens, the Cxx-TUBE-200NTi which uses the same tube lens as the Nikon Ti-2 microscope, or the C60-TUBE-180L which uses the Olympus 180mm multi-element tube lens. The Cxx-TUBE-200NTi tube lens has the largest clear aperture and large field but it is also significantly more expensive than the others. The Olympus C60-TUBE-180L is designed for a larger field than the C60-TUBE-B but is slightly more expensive.

ASI historically used VIS coatings for most of the achromat tube lenses (425-675nm), but since ~2015 we have gradually transitioned to using VIS-NIR coatings (400-100nm) to have versatility at the expense of slightly lower transmission. This transition is mostly complete as of 2022, and please contact us if you have special requirements. The OEM tube lenses and a few of the others have special coatings as indicated in the table below.


Other Tube Lens Assemblies

Click to Expand

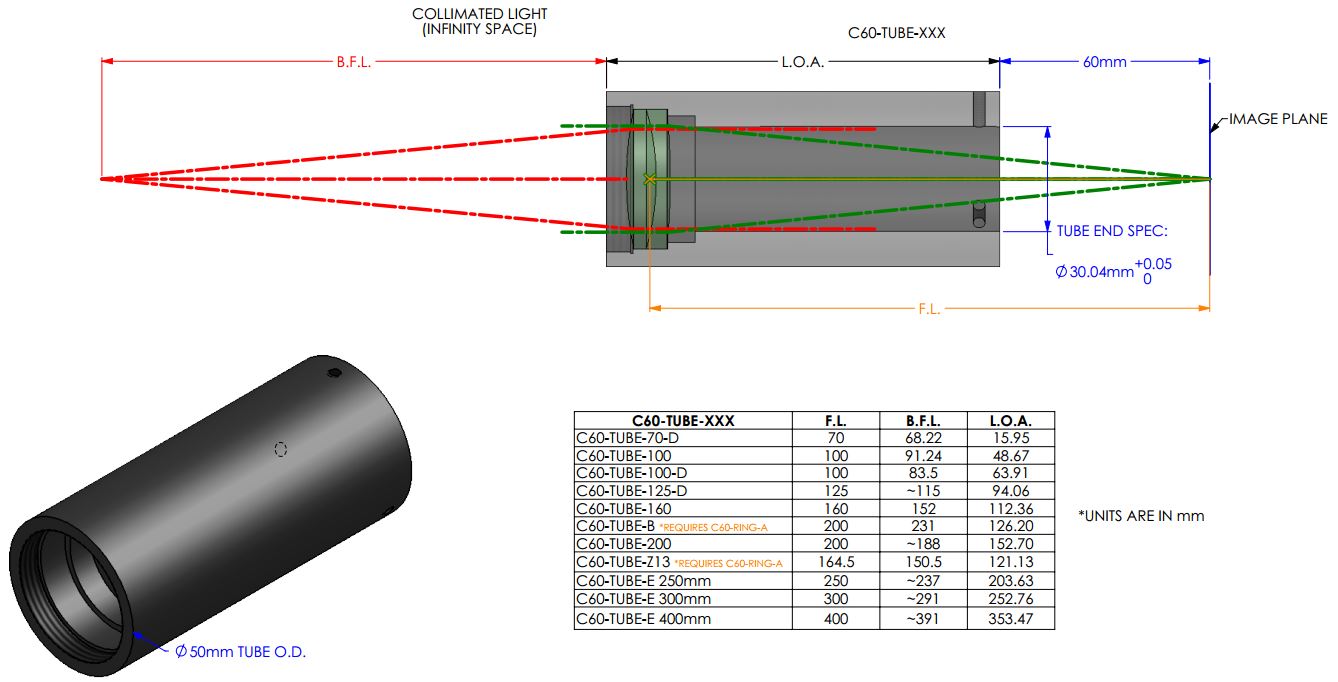

In addition to the most common C60-TUBE-B, there are also many other options for tubes and tube lenses that can be used to obtain different final magnifications. The lenses constructed with achromats usually include the male ring end built into the assembly, but the tube lenses using OEM lenses require a a coupling C60-RING (Nikon TUBE-B, Olympus TUBE-180L, and Zeiss TUBE-Z13).

All tube lenses have a 50 mm O.D. Most tube lenses have a 30 mm I.D. on the focus side with a 60 mm distance from the end of the tube to the image plane. Tubes ending with “-M” are different. “-M” lenses are female C60 on the focus side with varying distances to the image plane. The table below describes the various tube lenses with dimensions as indicated in Figure 1.

Part Number Lens F.L. (mm) Relative Magnification Lens type BFL (mm) 1) LOA (mm) CA (mm) 2) Collimated-side connection Focus-side connection Flange to Focal Plane (mm)
Nikon Objectives Olympus Objectives
C60-TUBE-B 200 1.00 1.11 Nikon OEM multi-element tube lens, coating ~VIS-NIR 230 126.2 30 C60 female 30mm/Zeiss 60.0
C60-TUBE-B-M 200 1.00 1.11 Nikon OEM multi-element tube lens, coating ~VIS-NIR 230 47.7 30 C60 female C60 female 138.5
C60-TUBE-200NTi 200 1.00 1.11 Nikon Ti-2 tube lens, C60 version includes C65M-C60F-ADPT and C60-RING-A-34 183 162.3 34 C60 male 30mm/Zeiss 60.0
C65-TUBE-200NTi 200 1.00 1.11 Nikon Ti-2 tube lens, note C65 version 189 156.3 36 C65 female 30mm/Zeiss 60.0
C60-TUBE-200NTi-M 200 1.00 1.11 Nikon Ti-2 tube lens, note C60 version with qty 2 C65M-C60F-ADPT and C60-RING-A-34 183 59.3 36 C60 male C60 female 163.0
C65-TUBE-200NTi-M 200 1.00 1.11 Nikon Ti-2 tube lens, note C65 version both sides 189 47.3 36 C65 female C65 female 169.0
C60-TUBE-180L 180 0.90 1.00 Olympus OEM multi-element tube lens, coating ~VIS 181 130 30 C60 female 30mm/Zeiss 60.0
C60-TUBE-180L-M 180 0.90 1.00 Olympus OEM multi-element tube lens, coating ~VIS 181 66 30 C60 female C60 male 123.9
C60-TUBE-Z13 164.5 NA NA Zeiss OEM multi-element tube lens 3) 150.5 121.1 34 C60 female 30mm/Zeiss 60.0
C60-TUBE-200LCA 200 1.00 1.11 Leica OEM multi-element tube lens4); must be used with LCA-C-MOUNT-xxx adapter ?? 48.6 30? C60 female Leica-style female NA
C60-TUBE-70D 70 0.35 0.39 Dual Achromat, VIS coating 68 16 16.5 C60 male 30mm/Zeiss 60.0
C60-TUBE-80 80 0.40 0.44 Achromat, VIS or VIS-NIR coating 84 20 28 C60 male 30mm/Zeiss 60.0
C60-TUBE-100 100 0.50 0.56 Achromat, VIS-NIR coating 92 48.7 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-100FS 100 0.50 0.56 PCX fused silica lens (for UV illumination) ?? ?? 33? C60 male 30mm/Zeiss 60.0
C60-TUBE-100D 100 0.50 0.56 Dual Achromat, VIS-NIR coating 83.5 63.9 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-120 120 0.60 0.67 Achromat, VIS-NIR coating 116 69.5 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-125D 125 0.625 0.694 Dual Achromat, VIS-NIR coating 104 94.1 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-133C 133.3 0.667 0.741 Custom dual doublet, VIS-NIR coating 118 98.3 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-133C-M 133.3 0.667 0.741 Custom dual doublet, VIS-NIR coating 118 49.8 33 C60 male C60 female 108.5
C60-TUBE-140D 140 0.70 0.78 Dual Achromat, VIS-NIR 123.5 105.3 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-160 160 0.80 0.89 Achromat, VIS or VIS-NIR coating 152 112.3 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-160-M 160 0.80 0.89 Achromat, VIS or VIS-NIR coating, 147.8mm to focal plane 152 25.9 33 C60 male C60 female 147.8
C60-TUBE-180D 180 0.90 1.00 Dual Achromat, VIS coating; recommend C60-TUBE-180L instead 149.6 157.0 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-200 200 1.00 1.11 Achromat, VIS-NIR coating (UV available) 191.3 152.7 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-240D 240 1.20 1.33 Dual Achromat, VIS-NIR coating ~225 202.1 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-240D-M 240 1.20 1.33 Dual Achromat, VIS-NIR coating, 218.5mm to focal plane ~225 43.7 33 C60 male C60 female 232.2
C60-TUBE-250 250 1.25 1.39 Achromat, VIS-NIR coating ~237 203.6 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-265D5) 265 1.33 1.47 Dual Achromat, VIS-NIR coating ~248 229 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-265D-M 265 1.33 1.47 Dual Achromat, VIS-NIR coating, 231.5mm to focal plane; note male C60 interface ~248 57.5 33 C60 male C60 male 232.2
C60-TUBE-300 300 1.50 1.67 Achromat, VIS-NIR coating ~291 252.0 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-358 358 1.79 1.99 Achromat, VIS-NIR coating ~355? ~308.0 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-358-M 358 1.79 1.99 Achromat, VIS-NIR coating ~355? 25.9 33 C60 male C60 female 340.1
C60-TUBE-400 400 2.00 2.22 Achromat, VIS-NIR coating ~391 352.0 33 C60 male 30mm/Zeiss 60.0
C60-TUBE-500-M 500 2.50 2.78 Achromat, VIS-NIR coating, 485.5mm to focal plane ~491 25.9 33 C60 male C60 female 485.5

Tube Lens Performance

Spherical aberrations are usually the main determinant of tube lens performance. This quantifies the degree to which all parallel rays are focused to the same point axially. Chromatic aberrations are also important for applications where more than one wavelength is used (e.g. fluorescent samples with both GFP and mCherry labels). Finally field curvature can be pronounced especially in the single-achromat tube lenses and especially at short focal lengths.

All ASI's tube lenses are intended for use with infinity-corrected objectives. Nikon and Olympus objective lenses (and tube lenses) include all corrections internally and can be safely mixed and matched for convenience, to adjust the magnification, etc. Leica and Zeiss objectives and tube lenses split the chromatic correction between the objective and tube lens in a proprietary way and cannot be mixed without some performance degradation, particularly chromatically.

For best imaging performance we recommend the C60-Tube-B which uses a Nikon 200 mm focal length multi-element tube lens, the 180mm C60-Tube-180L with Olympus glass, or else the large-aperture Nikon 200mm Cxx-TUBE-200NTi which has the largest clear aperture and excellent performance but at a significant price premium.

In general longer focal length lenses will have better performance relative to the diffraction limit, and smaller objective pupils (back aperture size) are more forgiving.

The dual-achromat lenses C60-TUBE-265D and C60-TUBE-240D are usually satisfactory for imaging depending on objective pupil size and requirements. Sometimes also (in order of decreasing performance relative to the diffraction limit) the dual achromat lenses C60-TUBE-140D, C60-TUBE-125D, and C60-TUBE-100D. C60-TUBE-133C internally uses a pair of custom-designed doublets and particularly with respect to field curvature is notably better than the dual achromats in similar focal length.

Lenses with long focal length such as C60-TUBE-400, C60-TUBE-358, C60-TUBE-300, and (sometimes) C60-TUBE-250 are usually satisfactory for imaging even though they only contain a single doublet simply because of the longer focal length

C60-TUBE-100 and C60-TUBE-70D are not recommended for imaging applications but are intended for illumination. C60-TUBE-160 is marginal for imaging applications depending on the size of objective back aperture and sensor size.

If there is a question about imaging performance of a specific tube lens, please contact ASI with information about the objective being used, sensor size, and wavelength range: we can run optical simulations to predict how the combination will perform relative to the diffraction limit.

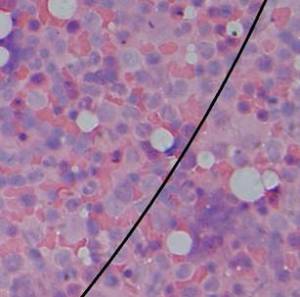

Example Images

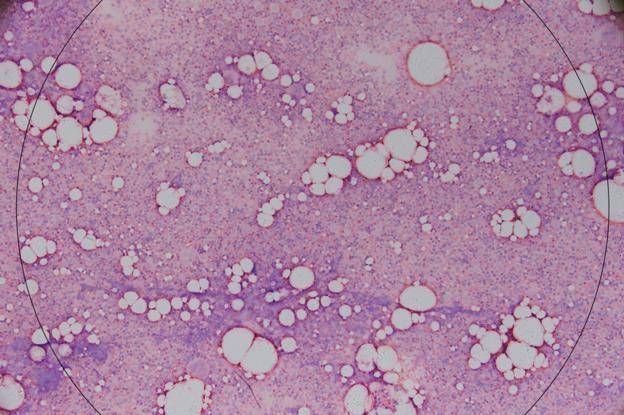

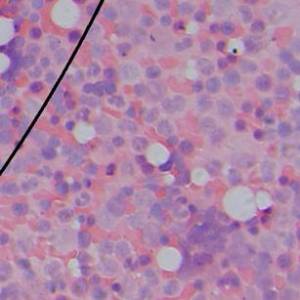

Imaging performance of the tube lens will depend upon the suitable combination of lens and objective, the pupil size of the objective, the field of view in the image, and the focal length of the tube lens. In general, longer focal length lenses will have better performance across the field of view. To illustrate this, we show some sample images taken with a variety of tube-lenses using a high quality objectives. All of the images are of a fixed stained bone marrow smear, which provides a nice uniform large area color sample with large spatial dynamic range. The images show a reference circle corresponding to a 25mm field number (FN) for the objective. Magnified sections of the image in the center of the field and near the objective design FN are shown as well. Images were taken using a Sony NEX-3 camera with 23.4 mm x 15.6 mm sensor with 5.1µ pixels. For a more complete set of test images, see the Tube Lens Performance document.

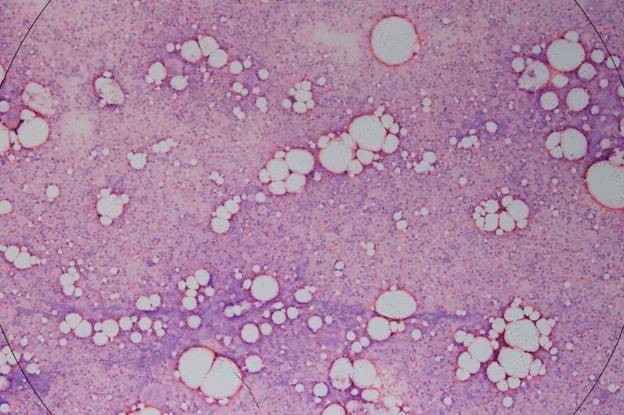

C60-Tube_B and Nikon 20X 0.75 Plan Apo Objective

The standard for performance comparison uses a Nikon 20X NA 0.75 PlanApo objective and the Nikon 200mm tube lens in the C60-Tube_B.

C60-Tube_160 and Olympus 20X 0.75 Plan Apo Objective

The Olympus objective is designed for a 180mm tube lens, so image sizes are slightly bigger than with the Nikon lens. The simple 160mm achromatic lens maintains good sharpness to the edge of the field.

Achromatic Tube Lens Ray-Trace Performance

Simple achromatic lenses or ASI’s dual achromatic tube lenses have been verified with an optical ray tracing program. For purposes of comparison, ray traces used a 12mm pupil aperture for all lenses. With a larger pupil it is more difficult for the lens to focus all rays as accurately, so performance will be better for objectives with smaller pupils, and worse for objectives with a larger pupil than 12mm compared to what is presented below. There are a few high quality low magnification (≤20X) objectives with a larger aperture than 12mm, but most objectives have a smaller pupil.

The field number for the lens is defined as the largest diameter for which a spot can be found where all ray fall within the Airy disk of a 12mm diameter aperture beam. The smallest spot need not be exactly on the focal plane, however.

Part Number Focal Length (mm) Field Number (mm) Airy Spot diameter at image for 12mm aperture (um) Lens performance at edge of 25mm field circle With Olympus (180mm tube) Objectives With Nikon (200mm tube) Objectives
C60- Spot focal plane radius (um) Vignette-free ∞ distance (mm) Tube lens mag. Image size of 25mm objective field (mm) Tube lens mag. Image size of 25mm objective field (mm)
TUBE_300 300 40 40 20 275 1.67 41.7 1.5 37.5
TUBE_200 200 28 27 45 180 1.11 27.8 1 25
TUBE_180D 180 34 24 25 150 1 25 0.9 22.5
TUBE_160 160 20 22 75 140 0.89 22.2 0.8 20
TUBE-140D 140 22 18
TUBE-125D 125 18 15
TUBE_100D 100 14 13 60 90 0.56 13.9 0.5 12.5
TUBE_100 100 6 13 500 90 0.56 13.9 0.5 12.5

MIM Components: Focus-side Image-plane Adapters for Lens Tubes

All of the tube lens assemblies listed above accept a variety of mounting adapters.

Camera Adapters - C-Mounts

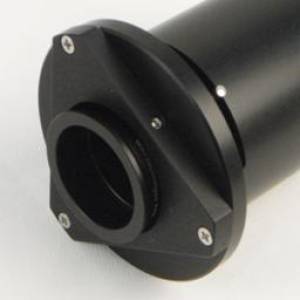

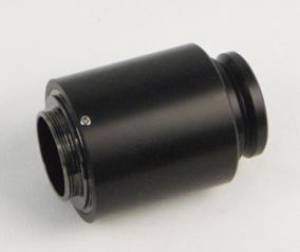

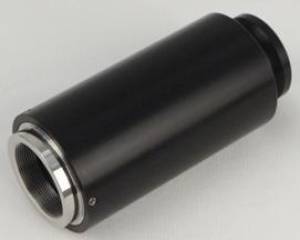

C60-3060-C-Mount is most the most common method for attaching a camera to a MIM system.

POL-SLDR rotatable polarizer

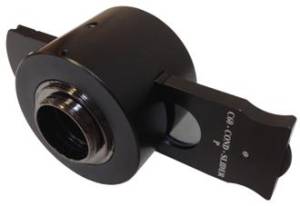

C60-SLDR-C-Mount is similar to the standard version but also has provision for a filter slider directly in front of the camera. Several sliders can be used with this C-Mount, including the optional POL-SLDR slider that accepts a polarizing filter that may be rotated with a thumb wheel.


DCMS dual C-mount splitter is optically the same length as the C60-3060-C-Mount but allows for a second reflected port. A standard plate beam splitter (25.5 mm × 36 mm × 1.2 mm – “Zeiss size”) fits in the device. There is also provision for 25 mm dia. × 3.5mm thick filters directly behind the C-mount flanges. The DCMS is often used with devices for autofocus functions, e.g. CRISP.

Camera Adapters - Large Format Mounts

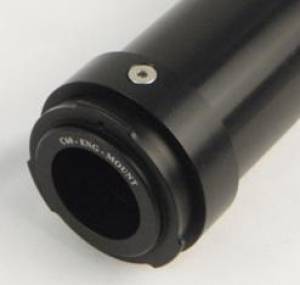

C60-ENG-Mount provides coupling for cameras using the bayonet Sony ENG mount standard.


C60-T-Mount Provides coupling to T-Mount devices and cameras. There are a wide variety of adapters commercially available to adapt interchangeable-lens cameras to T-Mount lenses. Using the C60-T-mount and the appropriate camera adapter, and you can use just about any interchangeable lens digital camera on the MIM.


The C60-F-Mount uses the C60-T-Mount in conjunction with a T-to-F adapter to provide a coupling for Nikon F-mount cameras.

Other Focus-Side Adapters and Accessories

Light sources can be placed at the image side of a tube lens to generate a collimated illumination source.

C60-LAMP-ADPT with C60-Ring

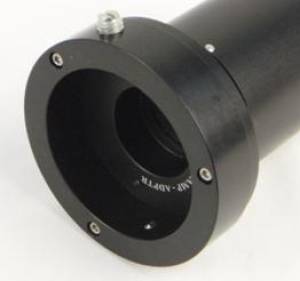

C60-LAMP-ADPT – Universal Lamp Adapter This part allows the C60-TUBE-xx lens assemblies to be used as excitation light condensers. The lamp adapter contains a field stop aperture and provides a mating surface for a variety of collimated light sources. Adapters are available for all of the major microscope manufacture’s lamp mounts, as well as for the C60-RING standard parts such as the C60-LLG-ILLUM or C60-LED-LAMP.

C60-LAMP-ADPT with Olympus Lamp-house Mount

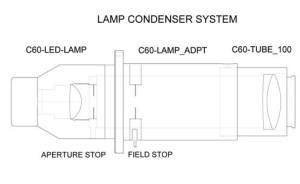

Lamp Condenser System

Contact ASI for your specific light source coupling requirements.

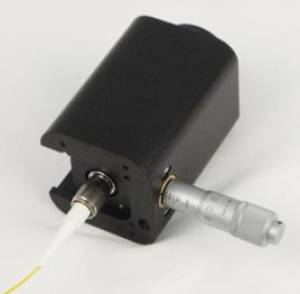

C60-FIBER-LAUNCH The Fiber Launch is designed for use with TIRF systems, but could also be used to inject laser light for optical trapping or similar applications. The tip of the fiber is designed to be at the focal point of the tube lens to which this part is attached. The micrometer head allows for precise lateral positioning of the fiber tip.

Users may wish to attach MIM components to an existing microscope system. The C-Mount port on a commercial microscope can provide a good coupling location with known optical characteristics associated with the image plane.


C60-FEMALE-C-MOUNT The Female C-mount port adapter places the focus of the microscope at the focus of an associated C60-Tube lens. This can be used to provide a region of collimated light in which filters and beam splitters can be employed effectively.

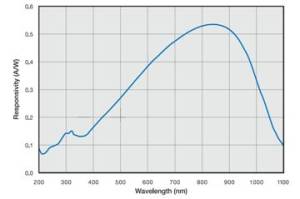

C60-C-MOUNT-PD This is a BNC connected C-mount silicon photodiode located at the image plane. The photodiode has 100 mm2 active area (11.3 mm dia.). Typical response curve is shown below.  

MIM Components: Collimated Light (infinity space) Adapters and Accessories

All of the modular optical assemblies that are designed to work in the collimated light region use a 38 mm diameter C60-RING to fasten modules together.

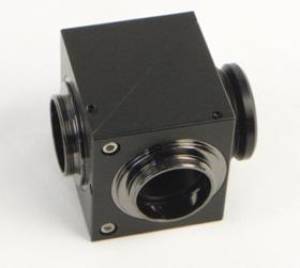

Beam Splitter Cubes

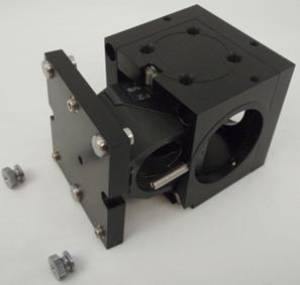

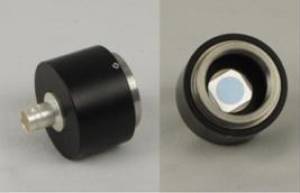

MIM-CUBE-K One face of the beam splitter cube is removable and has a dovetail that accepts the Olympus U-MF2 filter cube assembly. A set screw in the center of the dovetail locks the filter cube in place. The four M4 flat head screws fasten the dovetail to the cube body. Additional C60-DOVE cube mount sections are handy if you wish to swap filter cubes. Three other faces of the cube contain 38 mm diameter ports that accept C60-RINGs. The remaining two sides have a pattern of four M6 threaded mounting holes on 25mm spacing. The optical length between ports is 60mm.


MIM-CUBE-II-K This is the same as the basic cube above, but with precision alignment adjusters and quick-change magnetic locks. The cube mount has three ultra-fine pitch adjuster screws and a set of magnetic latch buttons that allow the cube to be adjusted and replaced with repeatable alignment without tools. Additional C60-DOVE-II cube mount sections are handy if you wish to quickly swap filter cubes. This cube is very useful for aligning two-camera arrangements, and precision alignment of excitation light sources.

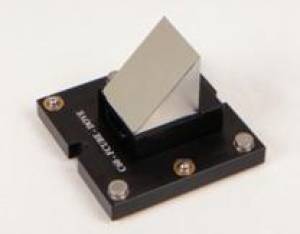

C60-25mm_CUBE-HOLDER Is shown here mounted to the C60-DOVE-II with a front surface right-angle mirror. Any 25mm optical cube or Right angle mirror can be glued to the CUBE-HOLDER for use in the C60-BEAMSPLITTER cubes above. 

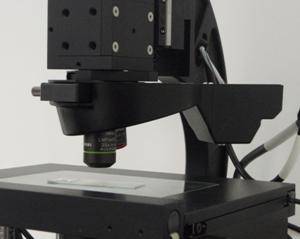

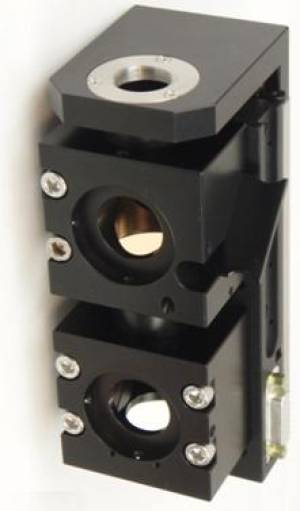

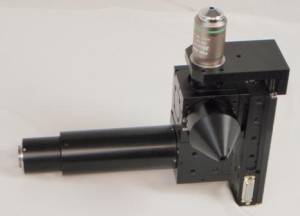

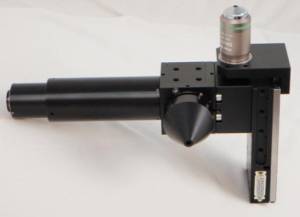

Right Angle Focus Mount – MIM1 and MIM2 scopes

For inverted microscope applications, it works well to fold the objective light path 90º so that the microscope can be kept short. The right angle focus mount achieves this goal while also providing automated focus using the ASI LS50 actuator. A front surface mirror assembly adds 64 to 75 millimeters to the infinity path, depending upon the focus position. The prism mount can be attached with a C60-RING to a beam splitter cube or directly to a main tube. The focus range is about 15mm before the focus tube extends fully from the prism house body. Longer travel is possible if stray light is not an issue. The LS50 provides focus resolution of less than 50nm when controlled with the MS2000 controller. The right angle focus mount can also be equipped with an automated objective turret.

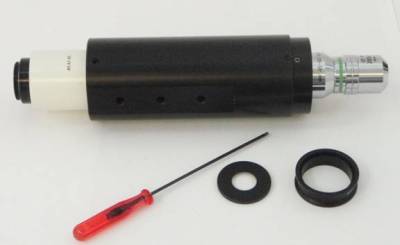

MIM1-OSRMS simple inverted microscope
MIM2-OSRMS double layer scope

C60-RA-2nd-PORT This device replaces the front surface mirror in the C60-RA-MIRROR with a dichroic beam splitter and provides a downward beam path for MIM2 scopes. The C60-RA-MIRROR is attached to the LS-50 below the C60-RA-2nd-PORT to provide a lower optical level for additional light path components. The lower port has an optical infinity path length 75 mm longer than the upper port.  

Modular Microscope Kits

Examples of Modular Infinity Microscope (MIM) assemblies are shown on the next couple of pages. There are many ways to put the parts together. The following examples show the common configurations.

MIM1-OSM25-PII w/ TN200-MMC photo port

MIM1 & MIM2 Scopes The most common basic MIM configuration includes the LS-50 focus actuator with the C60-RA-MIRROR assembly. A C60-CUBE-II and a photo port conisting of C60-TUBE_B lens module and C-mount camera adapter complete the basic kit.  

MIM3-OSM25-PII w/ TN200-MMC upright scope

MIM3 Cube-based Microscopes This configuration uses the LS-50 to focus the objective directly in line with the C60-CUBE beamsplitters. This places the filter cube as close to the objective as possible and works well for upright configurations. The “FC” configurations use the C60-CUBEs, directly mounted to the LS-50 rather than RA-MIRROR modules. For inverted applications adding a cube with a mirror directly after the filter cube will allow for a camera to be fitted easily.

MIM3-OSM25-2PII w/ TN200-MMC inverted scope

For inverted configurations, it is necessary to add a mirror so that the tube lens and camera can come out horizontally. Another C60-CUBE is used with a fixed front surface mirror to reflect the image.

In both of these configurations, the objective is as close to the filter cube as possible. This can be advantageous when using low magnification, high NA objectives and trying to look at wide fields of view. Vignetting by the filter cube will is minimized.

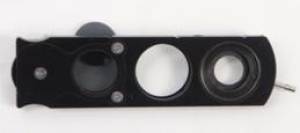

  C60-CUBE-SLDR This is a four-position motorized filter cube slider. The slide holds standard 25mm diameter emission and excitation filters and 25 x 36 x 1.05 mm fluorescent dichroic mirrors. Typical switch time between adjacent positions is less than 250 ms. The slider can be supported by the C60-RING mount system between other components, or it can be attached to the LS-50 focus actuator.

MIM4-OSM25-PII w/ TN200-MMC photoport

MIM4-SLDR-INVERT Complete inverted modular microscope based on the LS-50 focus actuator and the C60-CUBE-SLDR. This kit includes a lower cube with a right angle mirror, standard tube lens, C-mount adapter and a liquid light guide adapter for fluorescence excitation.  

Collimated-Space Tubes, Couplers and Adapters

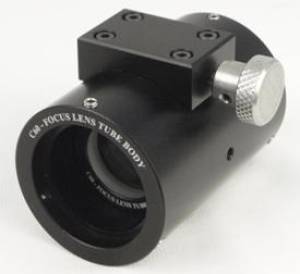

C60-FOCUS_TUBE allows positioning of a 25mm diameter lens with a focus travel range of 25mm. The tube body attaches to other components with the C60-RING. The 25mm optic can be retained with a snap ring or glued in place.

Typical uses include focusing a collimated beam to the back focal plane of a microscope objective lens for TIRF excitation, and adjusting focal position in 4F configurations.

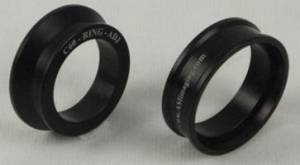

C60-RING & C60-RING-ADJ The C60-RINGs are used to join collimated-space components that have the 38mm I.D. x 6mm deep set-screw fitting. The standard C60-RING has a close fit to the mating I.D. and 30mm clear aperture. The C60-RING-ADJ is close fit on one side and has a 34mm O.D. on the other side to allow +/- 2mm of lateral adjustment between the two joined components. The C60-RING-ADJ has a 25mm clear aperture.


C60-RING_ADAPTER This handy coupling adapter can accept several ASI standard microscope lamp or excitation path adapter flanges so you can attach MIM modules directly to your microscope, or attach microscope lamps or similar components to you MIM system. Contact ASI with your requirements. The C60-RING_ADAPTER also has provision to attach a standard 30mm square, 6mm diameter “cage system” to the MIM so you can build even more custom systems.

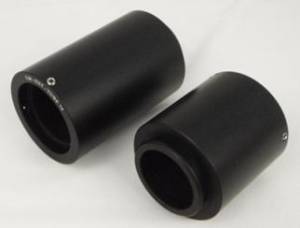

C60-EXT_TUBE_XX , Extension tubes can be used to space components in collimated space. The tubes come with the male RING fitting on one end and accept a RING on the other end. Presently 25mm, 50mm and 75mm versions are available with male/female fittings and there is a 15mm version with female/female fittings.

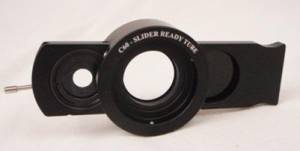

C60-SLDR-TUBE, This 20mm long extension tube will accept a filter slider that can also hold an iris diaphragm. This can be used as a simple way to introduce filters into a region of collimated space, or provide an adjustable optical stop.  

Objective Mounts and Changers

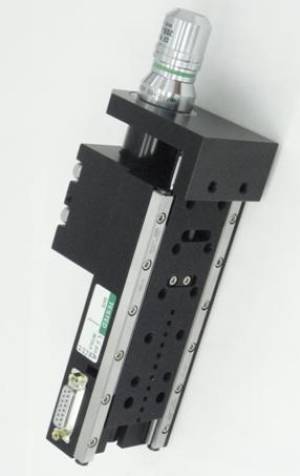

Automated Objective Turret – U-R156M5

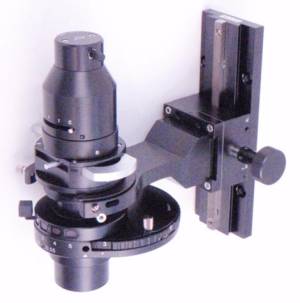

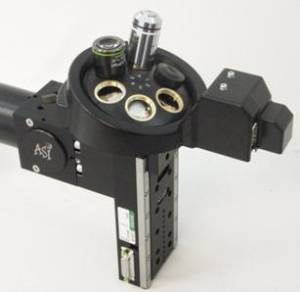

A modified Olympus 6-position motorized objective turret may be used with the MIM in either inverted or upright configurations.

Automated turret for upright

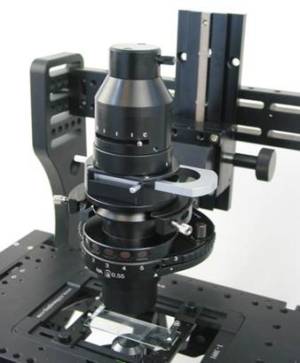

MIM1-OOA6-PII microscope with automated nosepiece

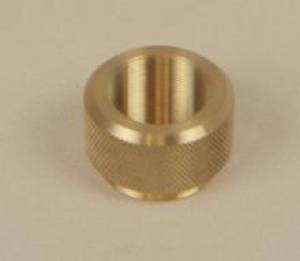

C60-RMS_M25_ADPT Objective adapter allows RMS threaded objectives to be used with M25-0.75 nosepieces and holders. Adapter is 15mm long so RMS 45mm long objectives come to the same focal point as Nikon CFI-60 objectives.  

Illumination Devices

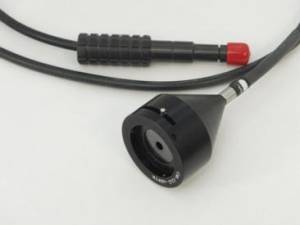

Liquid Light Guide Illuminator – MIM-LLG-ILLUM A simple way to couple fluorescent excitation light into the MIM is via a high intensity light source with a liquid light guide output. The liquid light guide adapter and be attached to the excitation port on a cube assembly with a coupling ring. The adapter contains a lens that focuses on the end of the light guide and projects the light into infinity space. The illuminator includes an iris to control the light aperture.

 MIM-LED-LAMP LED lamp Illuminator – MIM-LED-LAMP A high intensity LED lamp source is a simple way to provide transmitted light illumination, or even epi-fluorescent excitation when appropriate LED color is used. For transmitted light a white LED is used. LEDs are available in a range of colors with typically 20-30nm spectral half-widths for fluorescent excitation. The LEDs are rated at 3W and can supply ~100mW of luminous intensity depending on the specific LED wavelength. Using several beam splitter cubes and LED lamps, it is possible to construct a multi-color LED excitation system with these off-the shelf parts.  

Trans-illumination Condenser - OLY-TRANS-ILLUM kit

For transmitted light inverted applications this system is based upon the Olympus IX2-LWUCD condenser which combines a long working distance (WD 27mm) and a high numerical aperture (NA 0.55).

Figure 4: Trans-illumination kit

The trans-illumination kit contains the IX2-LWUCD with its 5-position turret and adjustable iris diaphragm. The kit also has a centerable condenser mount, a rack & pinion z-positioner for condenser focusing, and a high brightness LED lamp illuminator with adjustable field iris.

An optional kit (OLY-DIC-OPTION) of Olympus DIC prism and polarizer components is available for high-contrast, high-resolution images with 20X and 40X objectives.

For additional information on DIC microscopy see:

Configuring MIM Systems

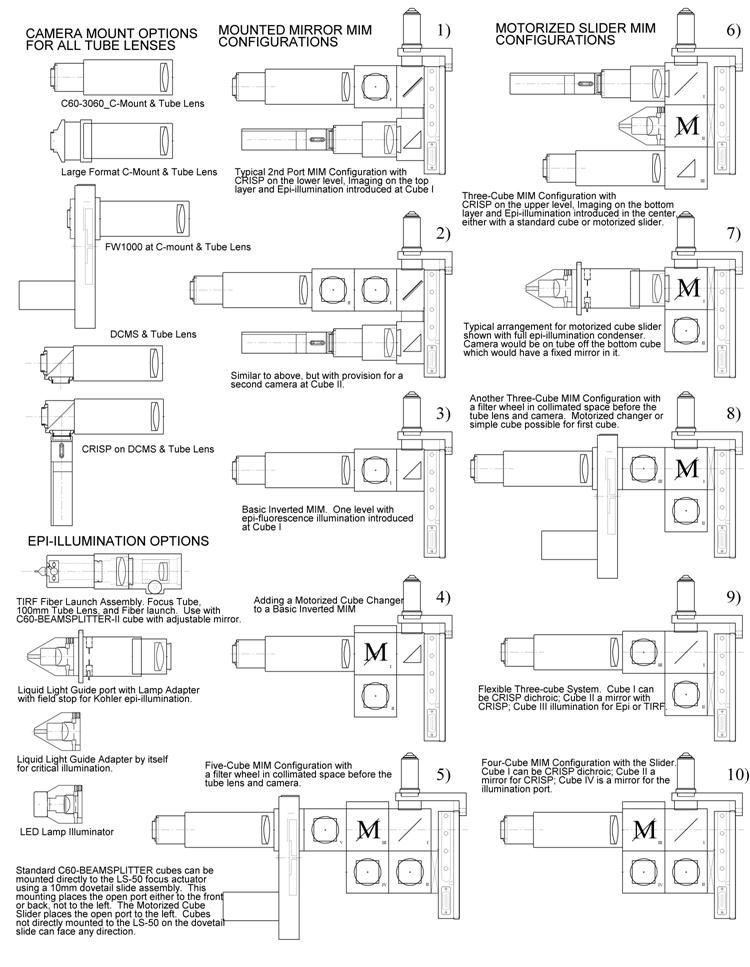

Some of the many ways our modular microscope components can be put together is shown in the configuration sketches on the next page. This is not meant to be exhaustive of the possibilities and doesn’t show cases where cubes would be added out of the plane of the paper, which could be useful. Contact ASI for further assistance in configuring a system. 

Infinity Space Limitations

The flexibility afforded by the infinity corrected microscope allows one to assemble an optical train with several beam splitters, mirrors, or focus devices in the infinity space region without substantially changing the optical characteristics of the system. However, there are limits to how far you can spread the distance from the objective to the tube lens before vignetting of the image will occur. The length of the infinity space, LInfinity, must be kept less than

LInfinity ≤ ( DTube – DOBJ ) × FTube / DSensor

where DTube is the diameter of the tube lens, DOBJ is the diameter of the objective pupil (back aperture), DSensor is the diagonal length of the sensor, and FTube is the focal length of the tube lens. If considering vignetting on a filter or some other element, use its size in place of DTube. We can use values for the MIM tube lens and consider a few examples for various objectives and sensor formats.

DTube = 32mm

FTube = 200 mm

LInfinity ≤ ( 32 mm – DOBJ ) × 200 mm / DSensor


DOBJ = 2 × FOBJ * NA.

Or equivalently, to find the required aperture ⌀aperture at some distance Laperture from the objective BFP use the following equation:

aperture = Laperture * Dsensor / Ftube + 2*NAobj*EFLobj

Approximate pupil diameter for a few objectives and the (diagonal) size of a few CCD sensors:

20X N.A. 0.5 10mm
20X N.A. 0.75 15mm
10X N.A. 0.25 10mm
40X N.A. 0.75 7.5mm
60X N.A. 1.4 9.7mm
typical sCMOS 18.8mm
1” CCD 16mm
2/3” CCD 11mm
½” CCD 8 mm

So if we consider nominal objectives with 12mm pupil and a 2/3” CC camera, we find

LInfinity ≤ ( 32 mm – 12 mm ) × 200 mm / 11 mm = 363 mm

For a fast objective and a 1” CCD camera, we find

LInfinity ≤ ( 32 mm – 20 mm ) × 200 mm / 16 mm = 150 mm

So in general, large camera sensors with N.A. objectives impose the limit on how many beam splitter cubes you can stack up before running into problems. The minimum-length epi-fluorescent inverted configuration, with one C60-BEAMSPLITTER cube is about 130 mm long. The exact length of the infinity region can be determined from the tables below that list the infinity space length of various MIM components and can be used to determine if a particular configuration will result in collimated-space vignetting or not.

Table 1: Infinity-Space Length of MIM Components

Part Number Description Infinity-Space Length (mm)
C60-BEAMSPLITTER Beam splitter cube mount 60
C60-RA_MIRROR Right Angle mirror focus section 52
C60-RA_OBJ_MNT Objective holder – variable focus 12 + focus range
C60-OBJ_MNT Objective holder – fixed 18
C60_TUBE_B Tube lens assembly 200 mm f.l. 6
U-R156M5 Automated 6-position objective turret 35
C60-RA_DOVE Dovetail mount for automated turret 12 + focus range
C60-RA-2nd-PORT Added distance to lower tier port 75
FW-1000 w/ Adapters Filter-wheel with infinity path mounts 43
12.5mm Radius FN 25 15.2mm square chip FN 22 13.3mm square chip - FN 19 One inch chip FN 16 2/3 inch chip FN 11
Objective Example Objective Beam Diameter (mm) 22mm aperture Free Length (mm) 29 mm aperture Free Length (mm) 22mm aperture Free Length (mm) 29 mm aperture Free Length (mm) 22mm aperture Free Length (mm) 29 mm aperture Free Length (mm) 22mm aperture Free Length (mm) 29 mm aperture Free Length (mm) 22mm aperture Free Length (mm) 29 mm aperture Free Length (mm)
60X NA 1.42 6 143 197 165 232 188 265 212 301 306 433
20X NA 0.6 12 95 149 108 176 122 200 138 227 197 324
10X NA 0.45 18 47 101 52 120 58 136 64 153 88 215
Collimated-Space MIM Configuration Name Single Objective C60-Duplex Objective Olympus Turret
C60-CUBE MIM FC Mot 77 124 112
C60-CUBE; RA-Mirror MIM Inv. Basic 129 176 164
C60-CUBE; FW1000 120 167 155
(2) C60-CUBES 137 189 180
(2) C60-CUBES; FW1000 180 227 215
(3) C60-CUBES 197 249 240
(3) C60-CUBES; FW1000 240 287 275

Avoid vignetting in collimated space be ensuring your configurations does not exceed the Free Length allowed by the camera chip size and objective beam diameter. Critical apertures are assumed to be near the tube lens and have either 22mm or 29mm clear aperture, as would be typical of 25 or 32 mm filters. When possible, place 25mm filters as close to the objective as possible. Mild collimated-space vignetting will appear as dimming in the corners of the image

Rapid Automated Modular Mounts (RAMM parts)

The RAMM components are engineered to provide a means to quickly put together an inverted microscope and automated microscope stage configuration for dedicated automated applications. The basic components are built around metric standard dimensions and complete assemblies are best used with metric breadboards.

RAMM-BASIC framework

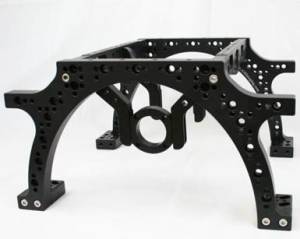

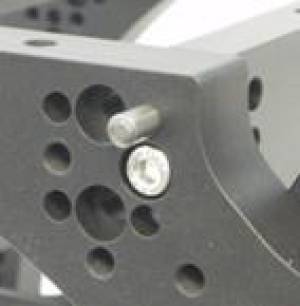

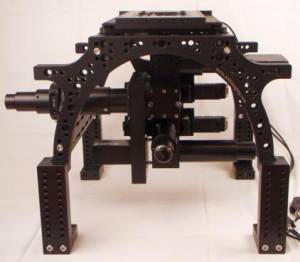

The basic RAMM frame work provides a mounting platform 400 mm wide by 450 mm deep by 250 mm tall. The arches contain a series of counter-bored holes for M8 bolts as well as holes for 8 mm dowel pins. Cross bars, which accept the M8 bolts and dowel pins, can be attached in several locations. The cross bars include mounting holes for several ASI stage models to mount to the RAMM when the bars are used on the top outside positions. The recommended stages to use with the RAMM hardware are the IX71/81 inverted stages, in either normal, piezo-Z or flat-top configurations. These stages are designed for travel centered about an optical axis in the center of the RAMM assembly.

RAMM-FULL, with top-side riser

Frequently equipment needs to be mounted above the stage, so a riser assembly is available that allows the mounting of top-side equipment without reducing normal stage travel. There are several hole sets for mounting the cross bar in various positions. Like the basic framework, the connections are pinned with 8mm dowels.

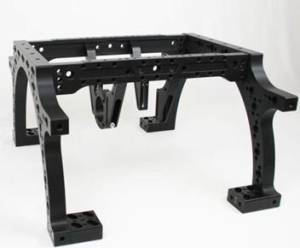

  The RAMM has evolved to include a more flexible mounting system for the drop arms. These stands are called the RAMM-DV series which have a sliding dovetail attachment for the support arms so the supports are not restricted to only positions where there are mounting holes.

RAMM-BASIC-DV framework

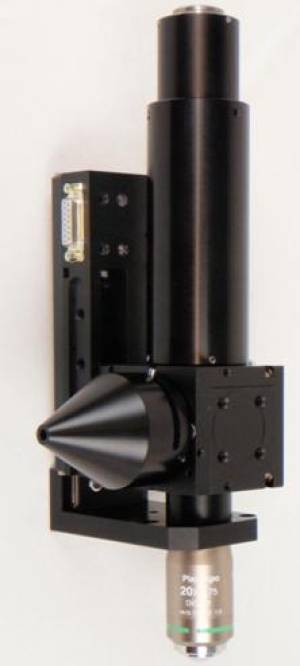

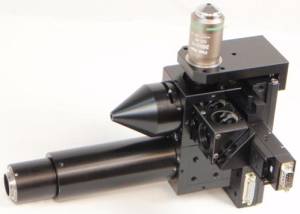

Any number of special mounting bars and fixtures can be bolted to the RAMM structure. One worth mentioning is the mounting system for the MIM. Pairs of special hangers are designed to hold the MIM centered within the RAMM framework, and also allow for substantial vertical adjustment. The hangers either attached directly to the LS-50 focus actuator, or to the collars that can be used to support MIM tube lenses.

When large assemblies are built below the stage level, RAMM-STILTS can provide more room for optical components underneath.

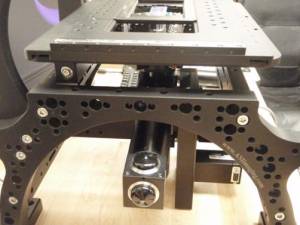

Another set of RAMM main mounting bars may be attached to the BASIC frame with a set of top-side bar supports. This allows secure mounting of a top-side modular microscope which can be arranged directly above the one below.

A complex modular microscope system that uses both of these frame options is shown in the photo at the left.  

RAMM & MIM Assemblies

Here are a few example photos of RAMM/MIM systems that can be assembled with these components.

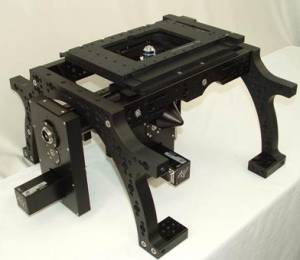

Complete system with large stage, filter wheel, and motorized objective turret and a C-mount Splitter for two cameras.
A Basic RAMM/MIM system with XYZ stage system and two filterwheels for fluorescent imaging is shown, right.

The Olympus condenser transmitted light option on a RAMM frame

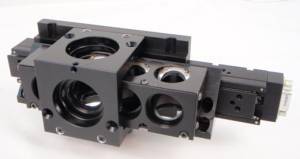

Multi-cube, multi-port fluorescent imaging system. 

Video Test Stands

VTS-2100 with locking dovetail slide.

The VTS-2100 and VTS-2300 video test stands are simple platforms on which to build motorized video microscope systems in an upright configuration. The solid base has an array of mounting holes for attaching ASI stages or other equipment. A built-in high brightness LED in the center of the base provides a light source. The upright arm will accept a dovetail slide for coarse position adjustment, and typically, an LS-50 linear stage is mounted to the slide for motorized fine focus adjustment.

VTS-2300 stand

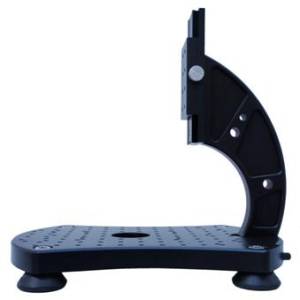

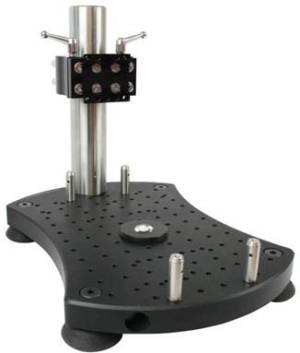

The newer VTS-2300 stand has a heavy-duty post mount with an adjustable mount that allows for flexible positioning of the top-side microscope.

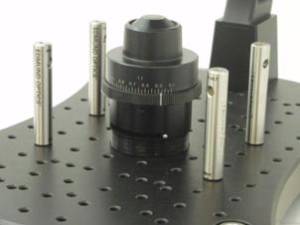

An Abbe condenser can be fitted over the LED source. Various collimating lenses or diffusers can be used in front of the LED lamp to improve the uniformity or intensity of the light. When a condenser is used, longer stage mounting posts and an upright arm riser are used to move everything higher.

A small amount of adjustment is provided in the dovetail mount of the condenser for centering. Obtain basic centering when bolting the upright members to the base. Some trial and error adjustment may be necessary.

Optional under-stage condenser and stage mounting posts

VTS-2300 Example Systems

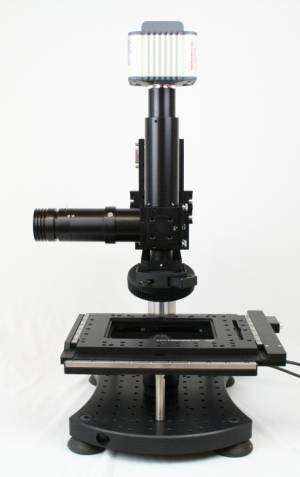

Complete upright MIM system with automated XYZ stage, objective turret, and C-mount camera, and epi-fluorescent LED illuminator on a VTS-2300 stand.

Note that this is distance from flange to the focal plane in collimated space, which is an unconventional definition of BFL

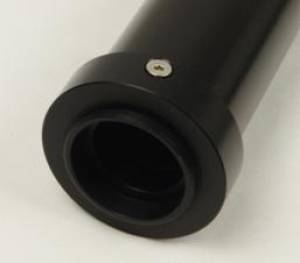

Clear aperture of C60-RING is 30 mm which may limit, use C60-RING-A-34 for 34 mm clear aperture if necessary
like Axio Imager; nominal 130mm +/- 5mm distance from objective flange to lens surface, so 121mm +/-5mm from C60-TUBE-Z13 to objective flange. This is for optimal chromatic correction.
roughly 50-150mm to objective flange, should double-check this.
various versions available including folded and with AFS
Address: 29391 W Enid Rd. Eugene, OR 97402, USA | Phone: +1 (541) 461-8181
mim_ramm_vts.txt · Last modified: 2024/02/09 18:45 by jon
